Forms of supply
Continous casting roll
A. Rolls
| REF. | A (mm) | B (mm) | C (mm) | WEIGHT(Kgs) |
|---|---|---|---|---|
| 20a | 550 | 1.330 | 850 | 2.000 |
| 20b | 550 | 1.300 | 950 | 2.000 |
| 20c | 760 | 1.450 | 780 | 2.000 |
| 19 | 700 | 1.200 | 850 | 1.500 |
| 17 | 600 | 1.100 | 550 | 500 |
| Ø Wire 9,5mm, 11,50 mm, 13,00mm | |
| REF. 20a | Pallets 1,43m x 1,43m x 1,05m |
| REF. 20b | Pallets 1,40m x 1,40m x 1,15m |
| REF. 20c | Pallets 1,55m x 1,55m x 1,00m |
| REF. 19 | Pallets 1,30m x 1,30m x 1,05m |
| REF. 17 | Pallets 0,65m x 0,65m x 1,20m |
| DIAMETER AND WEIGHTS | ||||
|---|---|---|---|---|
| DIAMETER | 9.50 | 11.50 | 12.50 | 13.00 |
| Kg / 1000(m) | 191 | 280 | 331 | 358 |
Rolls can be supplied with metallic cage or without it, with vertical or horizontal axes.
* OTHER DIAMETERS UNDER REQUEST

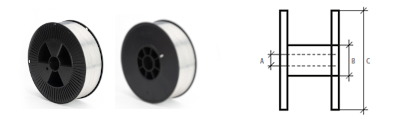

B. Spools
| REF. | A (mm) | B (mm) | C (mm) | TARE (Kgs) | WEIGHT (Kgs) |
|---|---|---|---|---|---|
| 33 | 51 | 206 | 300 | 0,535 | 6 |
| 37 | 51 | 125 | 300 | 0,765 | 10 |
| Ø Wire from 1,5mm, a 3,00mm | |
| REF. 33 | Pallets 1,20m x 1,00m |
| REF. 37 | Pallets 1,20m x 1,00m |
Ingot
Casting and different forms of supply
| TYPE OF INGOT | NET WEIGHT | DIMENSIONS (mm) | PACKAGING |
|---|---|---|---|
| L-1 Kgs | 1-1,1 Kgs | length: 380 height: 30 width: 40 | Wooden pallet 1.000-1.500 Kgs Dimensions of the pallet 0,80m x 1,20m |
| Small frustum | 30-80 grs | length: 40 height: 30 width: 40 | BIG-BAG 500-1.000-1.500 Kgs Dimensions of the pallet 1,00m x 1,00m Bulk. |
| Casting granules | 9-13 | Bags 50 Kgs BIG-BAG 500-1.000-1.500 Kgs | |
| Dimensions of the pallet 1,00m x 1,00m Bulk | |||
| Short wire granules | 6-12 | 50 Kgs Bags on wooden pallet 1.000-1.500 Kgs Dimensions of the pallet 1,00m x 1,00m BIG-BAG | |
| Short rod granules | 10x10 | Bags 50 Kgs BIG-BAG 500-1.000 Kgs Dimensions of the pallet 1,00m x 1,00m |
For ø thick, contact us. Contact
